In this lab you will build a small 4-D fMRI dataset from scratch and connect the chapter’s vocabulary — voxels, slices, volumes, TR, voxel space, world space, and image orientation — to the actual data structures used in analysis. We follow a five-step arc:
Simulate a 4-D dataset: a “brain” of voxels sampled once per TR, with one active region
Wrap it in a NIfTI image with nibabel, setting the affine matrix and header, and save/reload it
Convert between voxel (matrix) space and world (mm) space using the affine
Extract and plot one voxel’s time series — the fundamental object of fMRI analysis
Display slice montages, and see the difference between radiological and neurological orientation
Because we build the dataset ourselves, every piece of terminology maps onto a line of code you wrote.
How to run this notebook. Run it in your browser from the tutorial site, in Google Colab, or in a local Jupyter environment with numpy, matplotlib, and nibabel installed. Each cell takes at most a few seconds. See the chapter page for the concepts behind the code.
▶ This notebook is interactive. Click the ⏻ power icon at the top right of this page to run it in your browser — no installation needed (the kernel takes ~30–60 s to start the first time). Then run cells top to bottom, starting with the first code cell below: later cells depend on the imports and variables defined earlier, and will error if you skip ahead.
# Setup — installs nilearn when it's missing (safe to re-run anywhere)
try:
import nilearn # noqa: F401 — already present on many local setups
except ImportError:
import sys
if "pyodide" in sys.modules:
# Running in your browser (JupyterLite): install a browser-compatible version
import piplite
await piplite.install("nilearn==0.13.1")
else:
# Colab or local Python
import subprocess
subprocess.check_call([sys.executable, "-m", "pip", "install", "-q", "nilearn"])
print("nilearn ready:", __import__("nilearn").__version__)
nilearn ready: 0.14.0
import os
import tempfile
import numpy as np
import matplotlib.pyplot as plt
import nibabel as nib
from nibabel.affines import apply_affine
np.set_printoptions(precision=2, suppress=True)
print("numpy", np.__version__, "| nibabel", nib.__version__)numpy 2.4.6 | nibabel 5.4.2
Step 1 — Simulate a 4-D dataset¶
An fMRI run is a time series of 3-D volumes, one acquired every TR. We simulate a tiny run:
volume dimensions 20 × 24 × 12 voxels (x, y, z) — a “matrix size” of 20 × 24 with 12 slices
3 mm isotropic voxels, so the field of view is 60 × 72 × 36 mm
60 volumes at TR = 2 s — a 2-minute run
The “brain” is an ellipsoid with baseline intensity 400 (arbitrary units — remember, absolute fMRI values carry no meaning). One small region is “active”: its signal increases by 2% during 20-second task blocks that alternate with 20 seconds of rest — a block (“boxcar”) design. Real BOLD responses are also blurred and delayed by the hemodynamic response function; we keep the simulation simple here and take up the HRF in Chapter 18.
rng = np.random.default_rng(12) # fixed seed for reproducible "scanner noise"
nx, ny, nz, nt = 20, 24, 12, 60 # 20 x 24 in-plane matrix, 12 slices, 60 volumes
voxel_size, tr = 3.0, 2.0 # 3 mm isotropic voxels; TR = 2 s per volume
# --- A "brain": an ellipsoid mask centered in the volume -------------------
i, j, k = np.meshgrid(np.arange(nx), np.arange(ny), np.arange(nz), indexing="ij")
center = np.array([(nx - 1) / 2, (ny - 1) / 2, (nz - 1) / 2])
brain_mask = ((i - center[0]) / 8) ** 2 + ((j - center[1]) / 10) ** 2 \
+ ((k - center[2]) / 5) ** 2 <= 1.0
# --- Baseline 400 inside the brain, plus scanner noise ---------------------
data = np.zeros((nx, ny, nz, nt), dtype=np.float32)
data[brain_mask, :] = 400.0
data += rng.normal(0, 5, size=data.shape).astype(np.float32) * brain_mask[..., None] # noise SD = 5 a.u.
# --- An "active" region: a small sphere with a 2% boxcar task signal -------
active_center = np.array([14, 12, 6]) # voxel coordinates [i, j, k]
active_mask = np.sum((np.stack([i, j, k], -1) - active_center) ** 2, axis=-1) <= 4 # sphere, radius 2 voxels
active_mask &= brain_mask
block_len = int(20 / tr) # 20-s blocks = 10 TRs
task = (np.arange(nt) // block_len) % 2 # 0 = rest, 1 = task
data[active_mask, :] += 400.0 * 0.02 * task # +2% signal during task
print(f"data shape (x, y, z, t): {data.shape}")
print(f"{brain_mask.sum()} brain voxels of {brain_mask.size} in the volume "
f"({active_mask.sum()} active)")
print(f"run length: {nt} volumes x TR {tr} s = {nt * tr:.0f} s")data shape (x, y, z, t): (20, 24, 12, 60)
1680 brain voxels of 5760 in the volume (33 active)
run length: 60 volumes x TR 2.0 s = 120 s
Step 2 — Wrap the array in a NIfTI image¶
Scanners export DICOM files (one slice per time point per file — millions of files per study); analysis begins by converting to NIfTI, which stores an entire 4-D run in one file. A NIfTI image is essentially three things:
the data array (here 4-D: x, y, z, time)
the affine matrix: a 4 × 4 matrix mapping voxel indices to world (mm) coordinates
the header: meta-data including the “zooms” — voxel sizes in mm, and the TR as the 4th zoom
We build the affine for 3 mm isotropic voxels in the LPI convention (x: left → right, y: posterior → anterior, z: inferior → superior), with the world origin at the center of the volume — in real data, the origin sits at the anterior commissure.
affine = np.diag([voxel_size, voxel_size, voxel_size, 1.0]) # diagonal = voxel sizes (mm), LPI axes
affine[:3, 3] = -center * voxel_size # world (0, 0, 0) at the volume center
img = nib.Nifti1Image(data, affine)
img.header.set_zooms((voxel_size,) * 3 + (tr,)) # 4th zoom = TR in seconds
print("shape:", img.shape)
print("zooms (mm, mm, mm, s):", img.header.get_zooms())
print("affine:\n", img.affine)shape: (20, 24, 12, 60)
zooms (mm, mm, mm, s): (np.float32(3.0), np.float32(3.0), np.float32(3.0), np.float32(2.0))
affine:
[[ 3. 0. 0. -28.5]
[ 0. 3. 0. -34.5]
[ 0. 0. 3. -16.5]
[ 0. 0. 0. 1. ]]
# NIfTI round trip: save to disk (.nii.gz) and reload
tmpdir = tempfile.mkdtemp()
fname = os.path.join(tmpdir, "sim_bold.nii.gz")
nib.save(img, fname)
img2 = nib.load(fname)
print(f"reloaded {os.path.basename(fname)}: shape {img2.shape}, "
f"TR = {img2.header.get_zooms()[3]} s")
print("data identical:", np.allclose(img2.get_fdata(dtype=np.float32), data))reloaded sim_bold.nii.gz: shape (20, 24, 12, 60), TR = 2.0 s
data identical: True
Step 3 — Voxel space vs. world space¶
The data array is indexed by voxel coordinates [i, j, k] — plain matrix indices with no physical meaning. World coordinates [x, y, z] are in millimeters relative to the origin. The affine converts voxel → world; its inverse converts world → voxel:
[x, y, z] — world coordinates (mm, relative to the origin) · A — 4 × 4 affine matrix from the NIfTI header · [i, j, k] — voxel (matrix) indices · trailing 1 — homogeneous coordinate that lets A encode translations too
where are voxel (matrix) indices into the data array, is the 4 × 4 affine matrix stored in the image header, and are world coordinates in millimeters relative to the origin.
Reading an affine at a glance:
the (absolute) diagonal values are the voxel sizes in mm
the last column encodes the origin (where voxel [0, 0, 0] sits in mm)
a negative first diagonal element means the stored x-axis runs right-to-left — the image is stored “radiologically” and software must flip it for neurological display
off-diagonal values encode rotations (e.g., oblique acquisitions)
# Voxel -> world: where is the active region's center in mm?
mm = apply_affine(affine, active_center)
print(f"active-region center: voxel {active_center} -> {mm} mm")
# World -> voxel: invert the affine
inv = np.linalg.inv(affine)
vox = apply_affine(inv, [0.0, 0.0, 0.0])
print(f"world origin [0, 0, 0] mm -> voxel {vox} (the volume center)")
# The center voxel of the volume maps back to ~[0, 0, 0] mm:
print(f"voxel {center} -> {apply_affine(affine, center)} mm")
# A radiologically-stored image would have a NEGATIVE x scaling instead:
affine_radiological = affine.copy()
affine_radiological[0, 0] *= -1
affine_radiological[0, 3] *= -1
print("\nradiological-storage affine (note the -3 in the x position):")
print(affine_radiological)active-region center: voxel [14 12 6] -> [13.5 1.5 1.5] mm
world origin [0, 0, 0] mm -> voxel [ 9.5 11.5 5.5] (the volume center)
voxel [ 9.5 11.5 5.5] -> [0. 0. 0.] mm
radiological-storage affine (note the -3 in the x position):
[[ -3. 0. 0. 28.5]
[ 0. 3. 0. -34.5]
[ 0. 0. 3. -16.5]
[ 0. 0. 0. 1. ]]

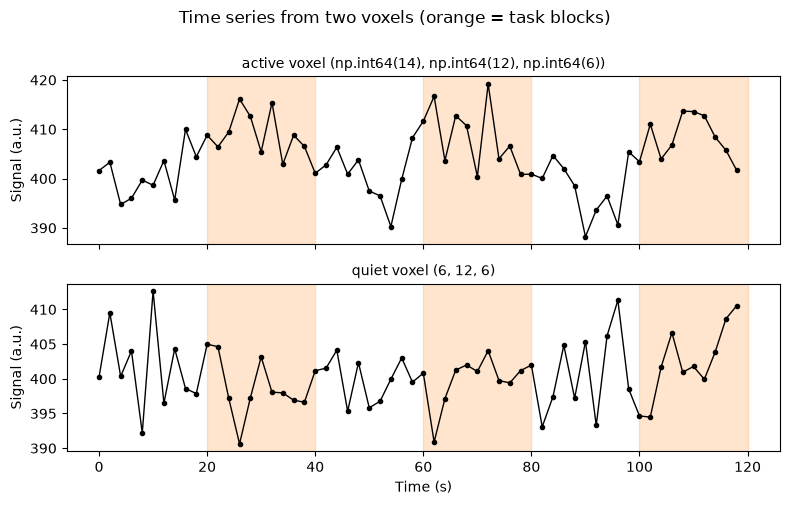

Step 4 — One voxel’s time series¶
Fix a voxel’s position and extract its intensity at every TR: that is a time series, the raw material of all fMRI analysis. We plot the active voxel against a “quiet” voxel elsewhere in the brain, shading the task blocks. The task effect is small relative to the baseline — which is why we quantify percentage signal change rather than raw units, and why statistical analysis is needed to separate signal from noise.
ts_active = data[tuple(active_center)].copy() # active voxel
quiet_voxel = (6, 12, 6) # a voxel outside the active region
ts_quiet = data[quiet_voxel].copy() # quiet voxel
t = np.arange(nt) * tr
fig, axes = plt.subplots(2, 1, figsize=(8, 5), sharex=True)
for ax, ts, name in [(axes[0], ts_active, f"active voxel {tuple(active_center)}"),
(axes[1], ts_quiet, f"quiet voxel {quiet_voxel}")]:
for b in range(0, nt, 2 * block_len): # shade task blocks
ax.axvspan((b + block_len) * tr, (b + 2 * block_len) * tr,
color="tab:orange", alpha=0.2)
ax.plot(t, ts, "k.-", lw=1)
ax.set_ylabel("Signal (a.u.)")
ax.set_title(name, fontsize=10)
axes[1].set_xlabel("Time (s)")
fig.suptitle("Time series from two voxels (orange = task blocks)", y=1.0)
fig.tight_layout()
# Percent signal change in the active voxel: (task - rest) / rest * 100
pct = 100 * (ts_active[task == 1].mean() - ts_active[task == 0].mean()) \
/ ts_active[task == 0].mean()
print(f"active voxel percent signal change: {pct:.2f}% (true value: 2%)")active voxel percent signal change: 2.20% (true value: 2%)

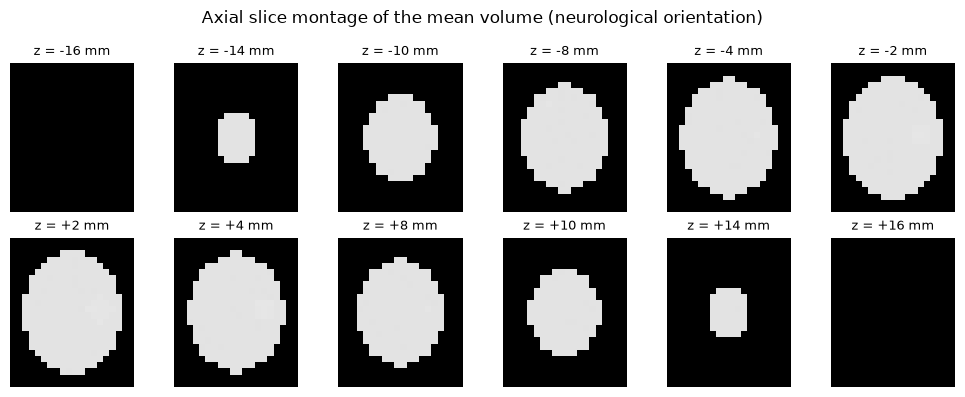

Step 5 — Slice montages¶
A montage displays a volume as a grid of 2-D slices — the standard way to view a whole brain at once. Here we show every axial slice of the mean volume (averaged over time), labeled with its z position in mm computed from the affine. Note the terminology at work: 12 slices, each a 20 × 24 matrix of voxels.
mean_vol = data.mean(axis=3)
fig, axes = plt.subplots(2, 6, figsize=(10, 4))
for kk, ax in enumerate(axes.ravel()):
# .T puts x horizontal; origin="lower" puts +y (anterior) at the top
ax.imshow(mean_vol[:, :, kk].T, cmap="gray", origin="lower",
vmin=0, vmax=450)
z_mm = apply_affine(affine, [0, 0, kk])[2]
ax.set_title(f"z = {z_mm:+.0f} mm", fontsize=9)
ax.axis("off")
fig.suptitle("Axial slice montage of the mean volume (neurological orientation)")
fig.tight_layout()

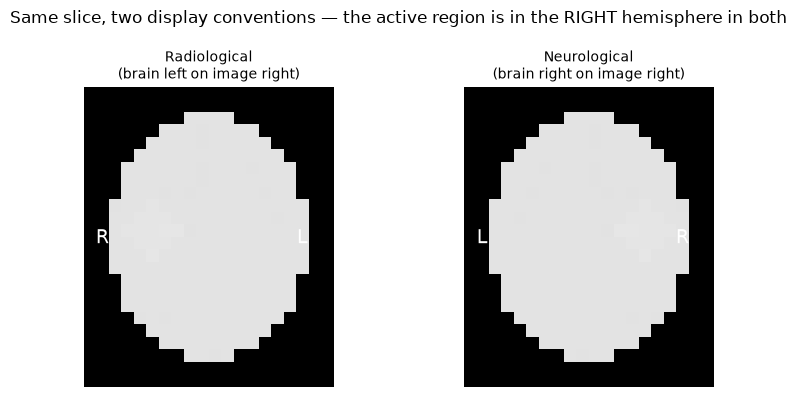

Step 6 — Radiological vs. neurological orientation¶
The brain is nearly left–right symmetric, so it is dangerously easy to display an image flipped without noticing. Two conventions coexist:
Radiological format: the brain’s left is on the right of the image (viewing the patient from the feet)
Neurological format: the brain’s right is on the right of the image (standard in cognitive neuroscience)
Below, the same axial slice is shown both ways. The active region — which we placed at positive x, i.e. the right hemisphere — switches sides of the display while remaining in the same hemisphere of the brain. In real data, “flipping errors” arise when header conventions are mishandled; safeguards include consistent software use, fiducial markers, and anatomical asymmetries (“left looms larger” — the calcarine fissure deviates rightward).
z = active_center[2] # axial slice index through the active region
sl = data[:, :, z, :].mean(axis=-1) # mean over time, slice through active region
fig, axes = plt.subplots(1, 2, figsize=(8, 4))
for ax, flip, name in [(axes[0], True, "Radiological\n(brain left on image right)"),
(axes[1], False, "Neurological\n(brain right on image right)")]:
im = sl[::-1, :] if flip else sl # flip the x (left-right) axis
ax.imshow(im.T, cmap="gray", origin="lower", vmin=0, vmax=450)
left_x, right_x = (17, 1) if flip else (1, 17)
ax.text(left_x, 11, "L", color="w", fontsize=14, ha="center")
ax.text(right_x, 11, "R", color="w", fontsize=14, ha="center")
ax.set_title(name, fontsize=10)
ax.axis("off")
fig.suptitle("Same slice, two display conventions — the active region is in the "
"RIGHT hemisphere in both")
fig.tight_layout()
Explore on your own¶
Change the geometry. Rebuild the affine for anisotropic 3 × 3 × 5 mm voxels (a classic acquisition). What changes in the header zooms, the affine, and the z labels of your montage?
Break the origin. Shift the affine’s translation so the origin is no longer at the volume center, and re-run the voxel ↔ world conversions. Where does world [0, 0, 0] land now? This is exactly what “setting the origin at the anterior commissure” does in real data.
Make a flipping error on purpose. Negate the affine’s x scaling (and adjust its x translation) without flipping the data array, save, and reload with nibabel. Use
nib.aff2axcodes(img.affine)to see how the orientation codes change — this is how software knows (or fails to know) which side is left.Hierarchy. Simulate a second “run” with a fresh noise seed and stack both runs. How would you organize runs, sessions, and participants on disk? Look up the BIDS standard (bids
.neuroimaging .io) and sketch the folder layout for this experiment.
